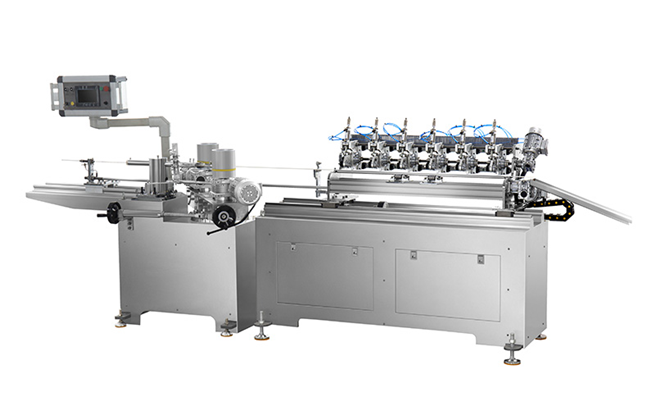

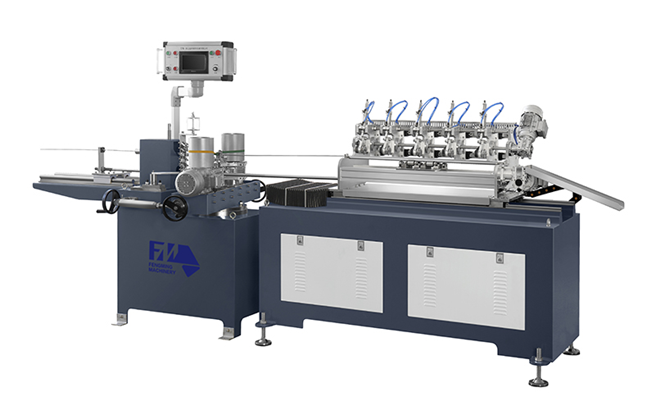

FM-ZG Paper Straw Making Machine

Application:

FM-ZG series paper straw machine, including paper unwinding, gluing, twisting, cutting, conveying and collecting units, equipped with multi round knives to cut off paper drinking straws on line. It is suitable for making 6-12mm diameter paper straws.

Main Features:

1.Machine adopts PLC control, all data can be display in the touch screen;

2. Numerical control servo cutter device, high precision cutting;

3. Automatically cut, automatically fall pipe, automatically change speed and revert;

4. Round knife cutting, incision more smooth, performance more stable;

5. With online multi-cut blades, no need secondary cutting, save labor and time.

6. Stainless steel gluing box, with polyurethane scraper and high carbon steel plastic knife, durable in use;

7. Machine adopts Flange for fix the mandrel.

8. Machine supply of lubricant automatically.


Layer of straw

3 layer

Straw diameter

6-12 mm

Straw wall-thickness

0.3-1 mm

Cutting Length

100-800mm

Winding head

2

Power

6kw

Cutter

6 sets

Operator

1-2 person

Winding speed

180 model: 10-40m/min; 280 model: 10-60m/min

Speed control

Frequency

Working Air Pressure

0.6Mpa

Power Supply

380V /3phase/ 50Hz

Measurement

5600*1600*1750mm

Working Space

11000mm * 7000mm*2000mm

Weight

1300kgs



Spare Parts

Driving system

Main motor

3 KW

Servo motor

Yaskawa

Frequency inverter

3.7 KW Schneider

Control system

PLC controller

China Research

Touch screen

Weinview

Pneumatic Components

Airtac

Electric Components

Schneider

Equip device

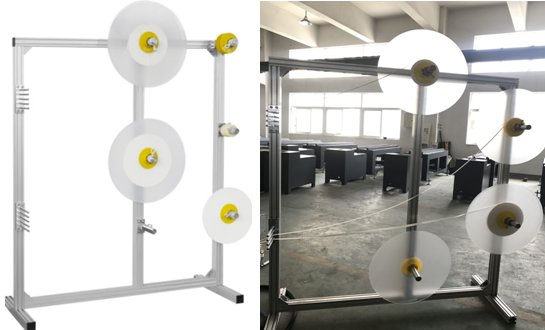

Paper shelf type

Integral reel stand

Auto fall straw shelf

Have

Glue shelf

Have

Twist Belt

1

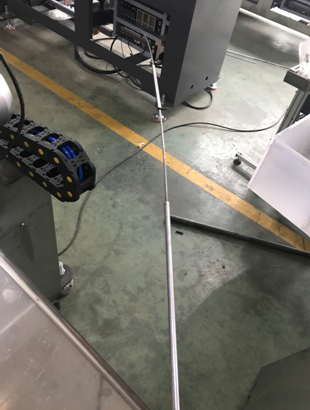

Core mould

2

Tool box

1

Spare Knife

5pcs

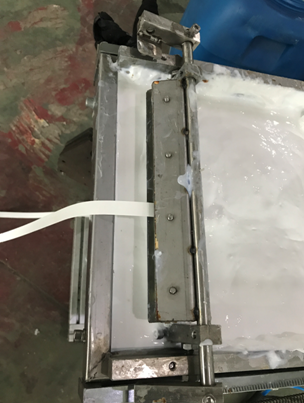

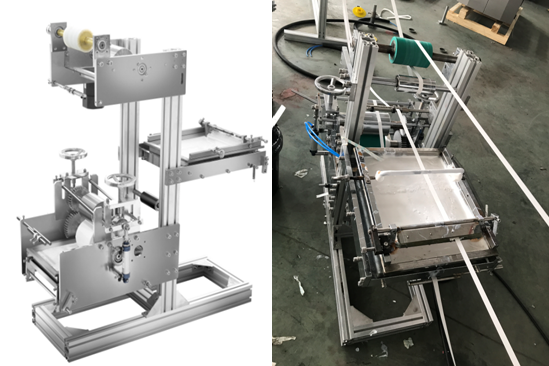

Gluing unit for coating glue with oil part

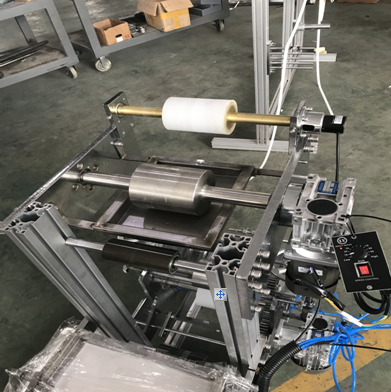

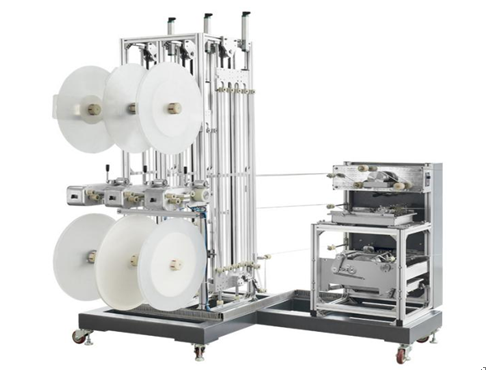

Nonstop unwinder & gluing unit

(Optional)

3 lines – USD6,600

Oil Tank

(for anti-adhesion between mould & straw papers)

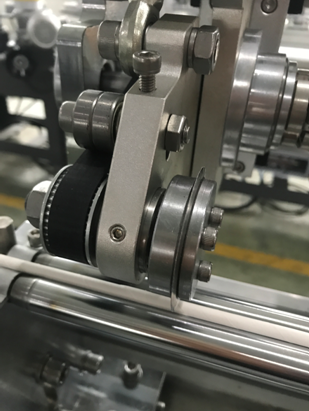

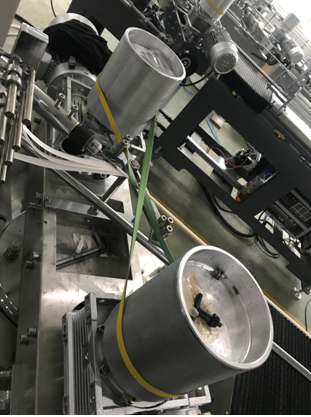

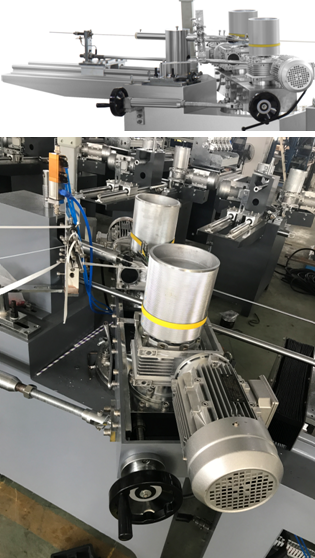

2 winding heads and 1 pc belt

(The gap and angle between winding head can be adjusted by hand wheel as the picture shows.)

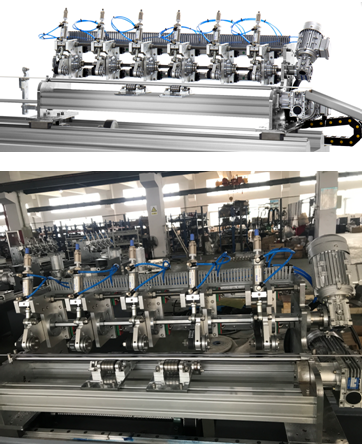

6 Blades

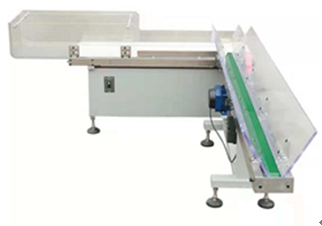

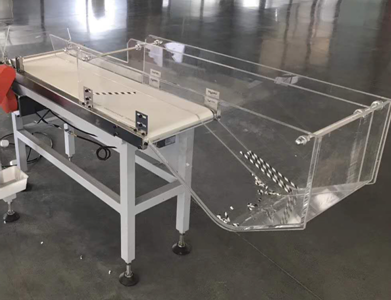

Conveyor for auto unloading paper straw

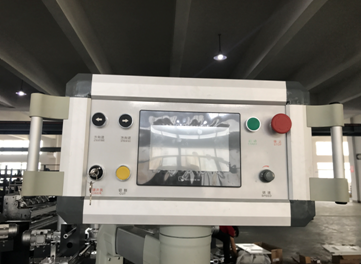

PLC and HMI

All parameters can be preset at touch screen

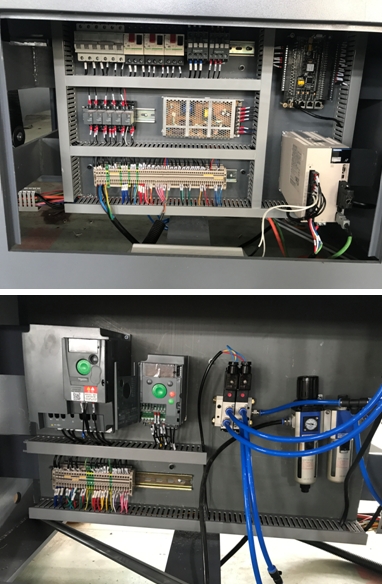

Distribution Cabinet

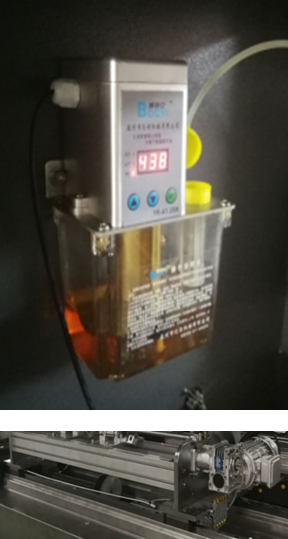

Auto Lubrication Unit

Paper Straw Collecting Unit

1.Straw mouldUSD35/set




2.BeltUSD8/pc



3.Slitting knifeUSD8/pc



4.BladeUSD4/pc
